Transistors are three-terminal devices made of semiconductor materials that can amplify or switch electronic signals. The two main types of transistors are bipolar junction transistors (BJTs) and field-effect transistors (FETs).

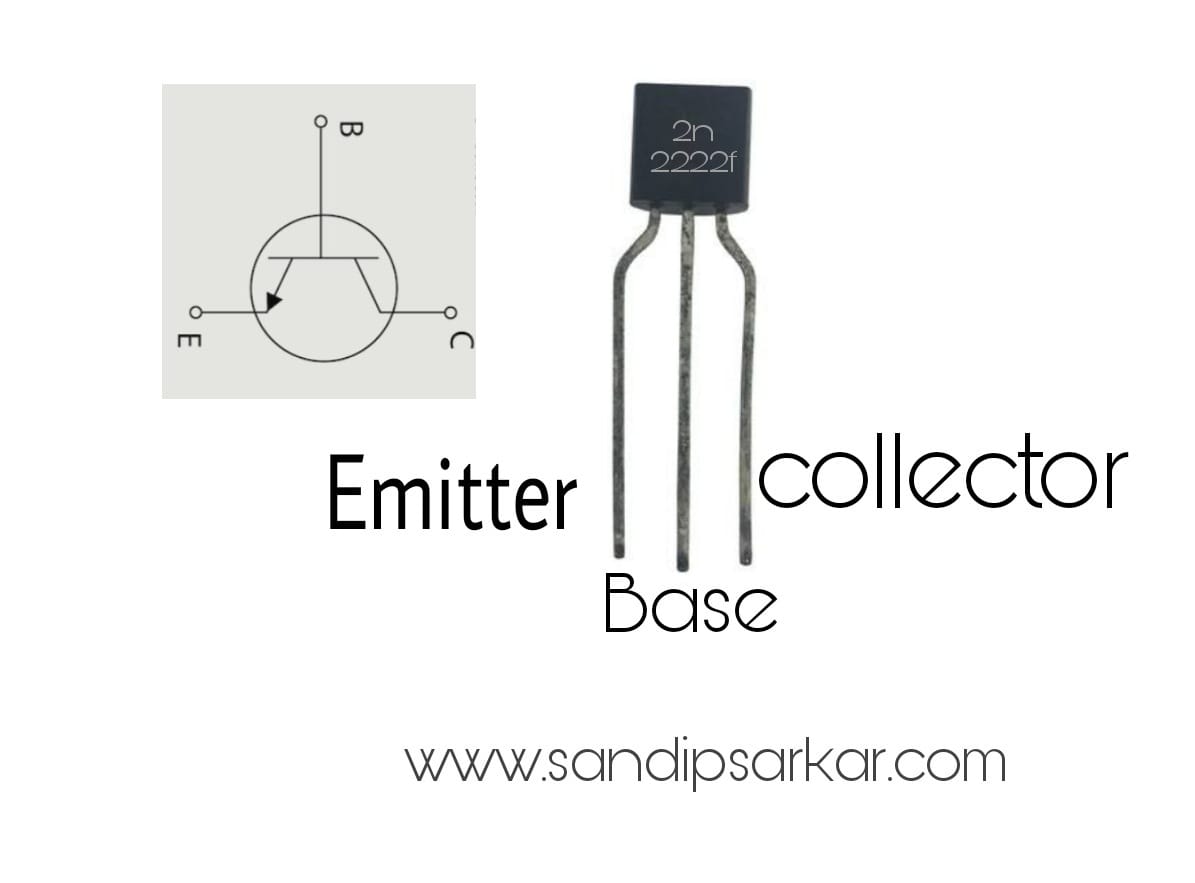

Bipolar junction transistors have three regions: the emitter, base, and collector. The base region is thin and lightly doped, while the emitter and collector regions are heavily doped. NPN and PNP are the two types of BJT, and they differ in their doping arrangements.

Field-effect transistors have three types: junction FETs (JFETs), metal-oxide-semiconductor FETs (MOSFETs), and insulated-gate bipolar transistors (IGBTs). They have three terminals: 1. source, 2. gate, and 3.drain. In JFETs, the gate is formed by a p-n junction, while in MOSFETs, it is a metal gate separated from the semiconductor channel by a thin oxide layer. IGBTs combine the advantages of MOSFETs and BJTs and are often used in high-power applications.

Transistors are used in electronic circuits for amplification, switching, and other functions. They can be used as switches, where they are either in an on state, allowing current to flow, or in an off state, blocking current flow. In amplifier circuits, transistors are used to increase the amplitude of the signal.

Transistors have become an essential component in modern electronics, enabling the development of many advanced electronic devices. Their miniaturization has led to the development of smaller and more powerful electronic devices, including computers, smartphones, and televisions.
