Coil
Coil Details
A coil is an electrical component that is commonly used in a wide range of electronic devices and systems. It is a passive component that is made up of a length of wire that is wound into a helix or spiral shape. The wire is typically made of copper, and it can be coated in insulation to protect against electrical interference.
When an electric current is passed through a coil, it generates a magnetic field around it. This magnetic field can be used in a variety of applications such as power transfer, signal filtering, and electromagnetic induction.
Coils are commonly used in electronic devices such as transformers, inductors, and solenoids. In a transformer, a coil is used to transfer electrical energy from one circuit to another through the magnetic field that is generated around the coil. In an inductor, a coil is used to store energy in the magnetic field, which can be released later on. In a solenoid, a coil is used to generate a magnetic field that can be used to move a plunger or other mechanism.
The properties of a coil depend on various factors such as the number of turns in the coil, the diameter of the wire, and the presence of a magnetic core. These factors can be adjusted to achieve specific electrical properties such as inductance, impedance, and resonant frequency. Coils are available in different sizes and configurations to meet the needs of different electronic applications.
Mobile,computer, and all degital device Coil

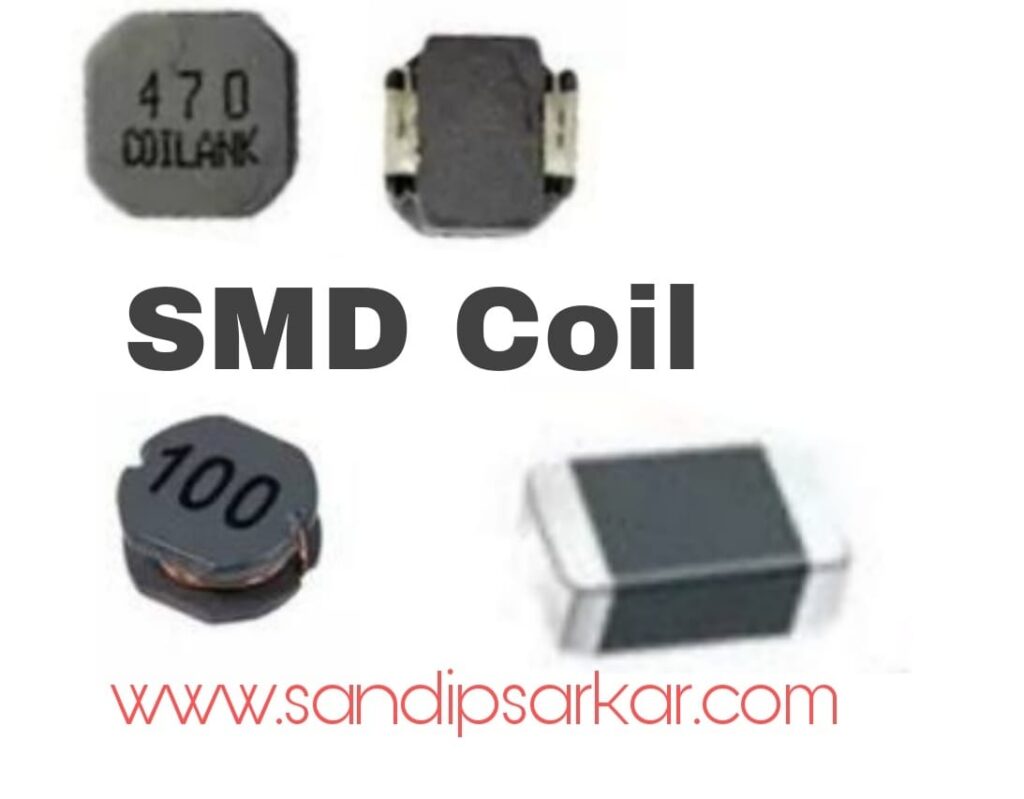

SMD (Surface Mount Device) coils are commonly used in a wide range of digital devices including mobile phones, computers, and other electronic devices. They are used for a variety of purposes such as filtering, energy storage, and signal processing.
One common use of SMD coils in digital devices is in power management circuits. They are used in DC-DC converters to step up or step down the voltage level of the power supply. SMD coils can also be used in battery charging circuits to filter out noise and ensure a stable charging current.
Another common use of SMD coils in digital devices is in radio frequency (RF) circuits. They are used to filter and tune RF signals, improving the signal quality and reducing noise interference. SMD coils can also be used in antenna circuits to match the impedance of the antenna to the input impedance of the RF circuit.
SMD coils are also used in data transmission circuits, such as in Ethernet and USB interfaces. They are used to filter out noise and ensure a stable data signal. SMD coils can also be used in audio circuits, such as in headphone amplifiers, to filter out noise and improve the quality of the audio signal.
The specific application and design of an SMD coil in a digital device will depend on the requirements of the circuit and the device itself. SMD coils are available in different sizes, shapes, and inductance values to meet the needs of different electronic applications.
Check SMD Coil
To check an SMD (Surface Mount Device) coil, you can use a multimeter or an LCR meter. Here are the steps to check an SMD coil using a multimeter:
- Set your multimeter to the “ohms” setting.
- Place the positive and negative leads of your multimeter on the two terminals of the SMD coil. If the terminals are too small, you can use a pair of tweezers to hold the leads in place.
- If the SMD coil is intact and functioning properly, the multimeter should display a resistance value that is within the range specified by the manufacturer. If the resistance value is outside of this range, it may indicate a fault in the coil.
- You can also check the inductance of the SMD coil using an LCR meter. Set the LCR meter to the inductance measurement mode and place the SMD coil on the test pads. The LCR meter should display the inductance value of the coil, which should match the specifications provided by the manufacturer.
If the SMD coil is not working properly, it may need to be replaced. However, it’s important to first ensure that the issue is not with other components in the circuit, as a faulty coil may be a symptom of a larger problem.
